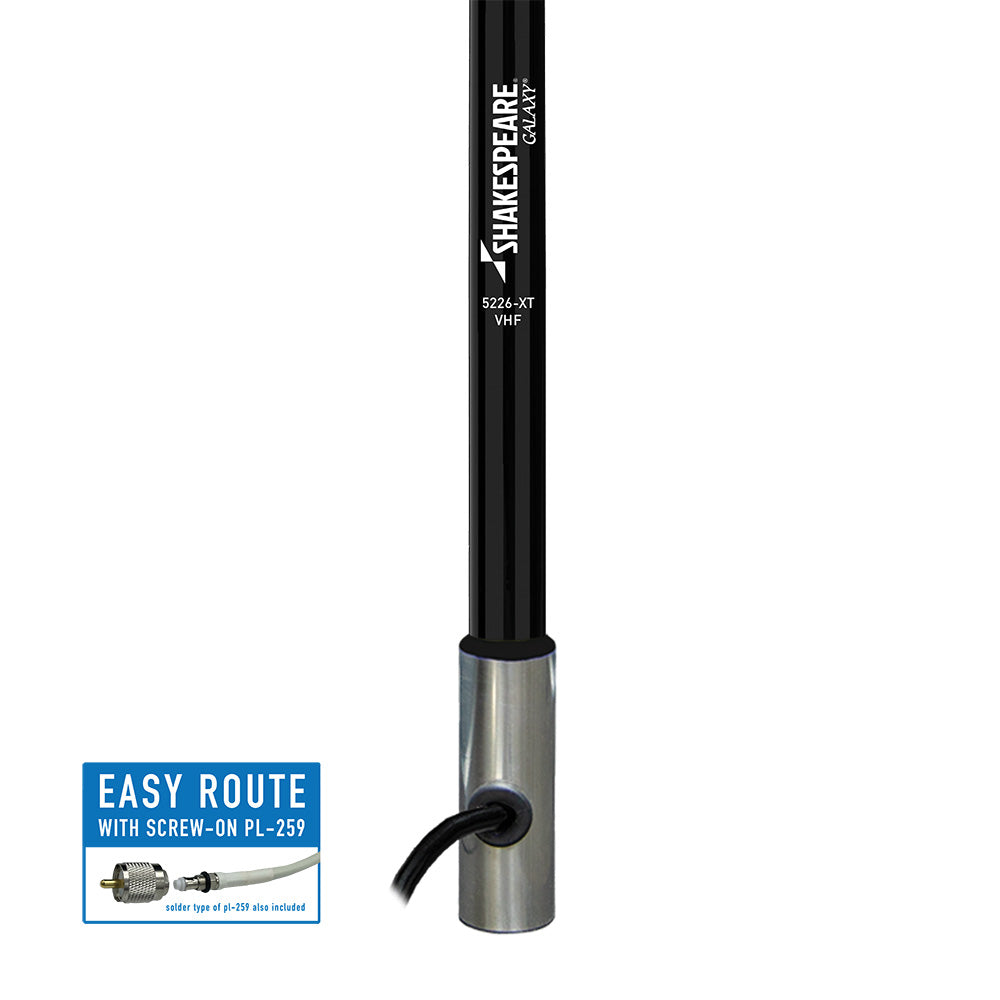

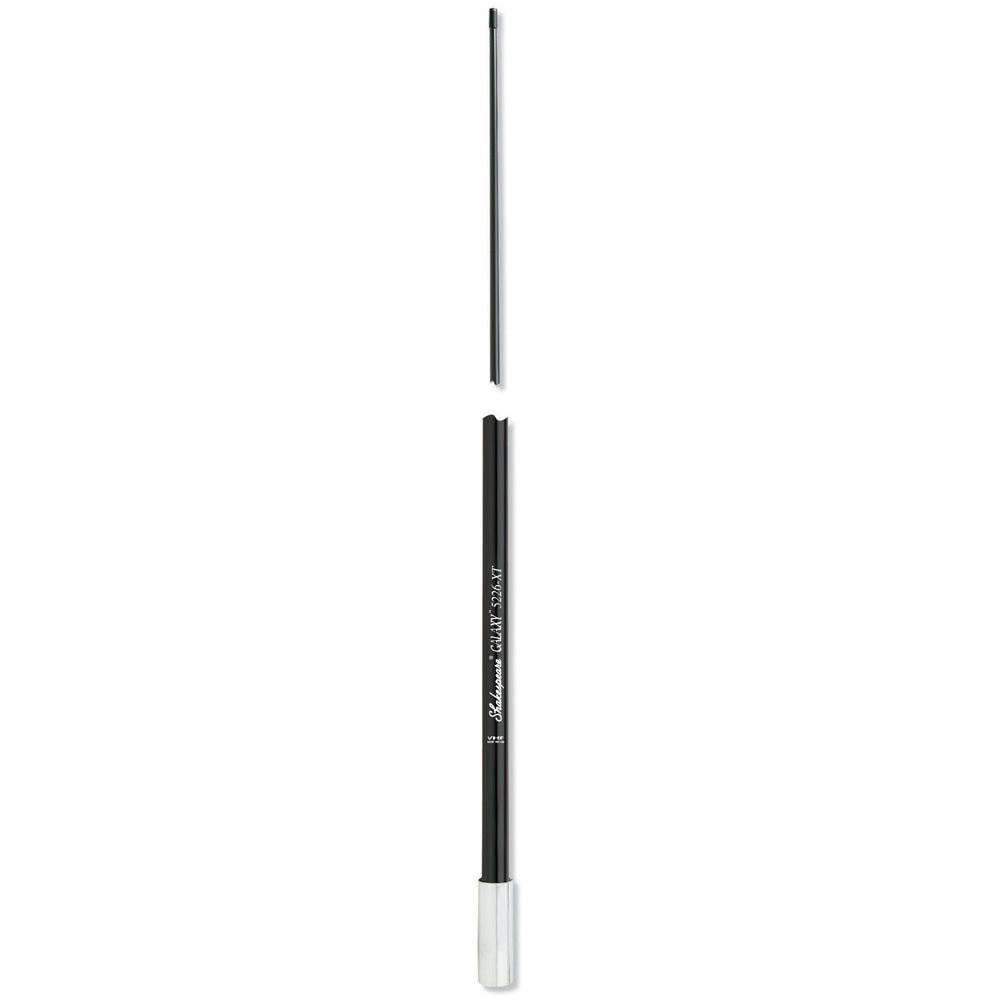

Shakespeare Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain [5226-XT]

Shakespeare Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain [5226-XT]

Regular price $219.99
Regular price Sale price $219.99
Sale Sold out

Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain

EXTRA TOUGH!

This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

  • Collinear-phased 5/8 wave elements
  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • 20' RG-8/X low-loss cable plus a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years

Technical Specifications:

  • Frequency: VHF Marine Band
  • Bandwidth: 3 MHz within 2.0:1 VSWR
  • SWR: Mominally 1.5:1 at 156.8 MHz
  • Impedance: 50 ohms
  • Gain: 6 dB
  • Max Input (Watts): 100 watts
  • DC Ground: YES
  • Height (feet): 8
  • Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Color: Black
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 96"
  • Box Dimensions: 3"H x 3"W x 95"L WT: 2.4 lbs
  • UPC: 719441200237

Quick Guide (pdf)
