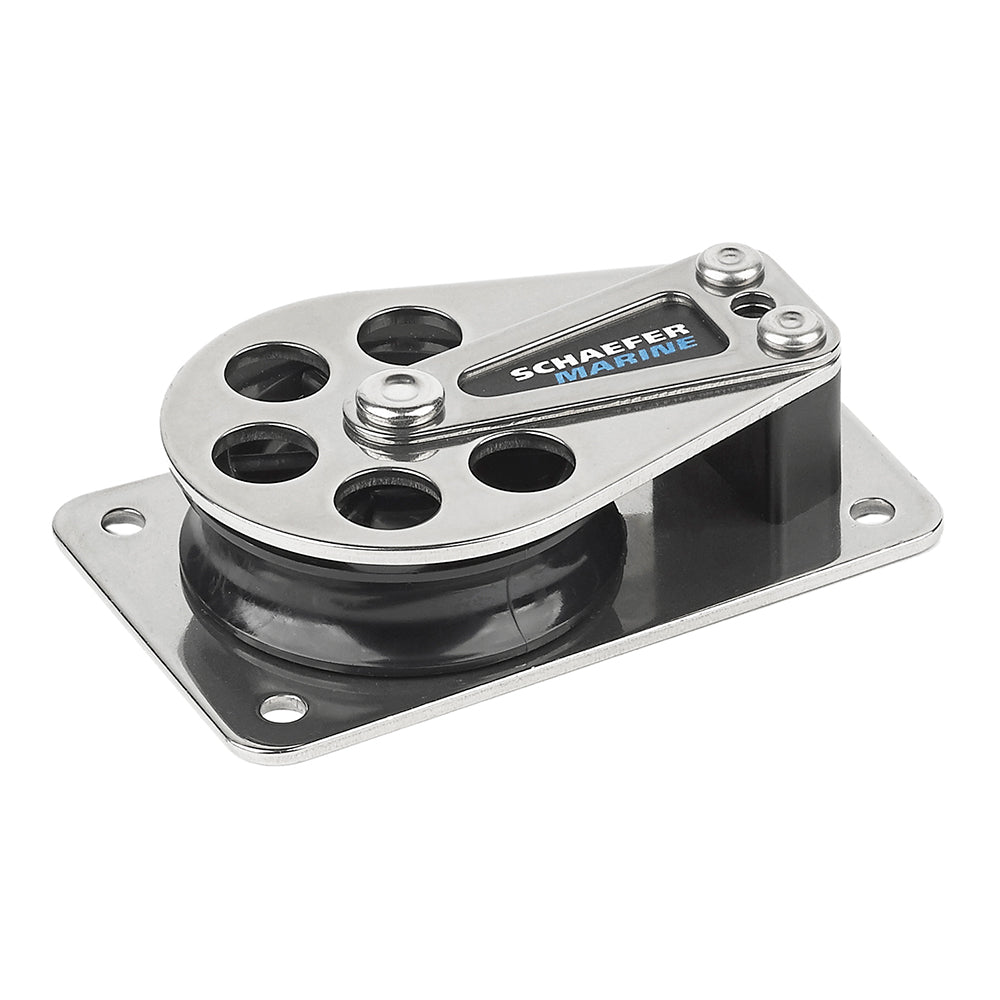

Schaefer Series 5 Flat Base Cheek Block - Stainless Steel Cheeks [505-11]

Series 5 Flat Base Cheek Block - Stainless Steel Cheeks

Series 5 Cheek Block with Stainless Steel cheek. Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

• Sheave Diameter 2" (51 mm)
• Max. Line 7/16" (11 mm)
• Length 3-5/8" (92 mm)
• Width 2-7/32" (57 mm)
• Height 7/8" (22 mm)
• Fasteners (4) #10 - RH (5 mm)
• C/C 3" (76 mm)
• SWL 1750 lbs. (795 kg)
• Weight 6.9 oz. (196 g)
• Max Line 7/16" (11mm)
