Ritchie

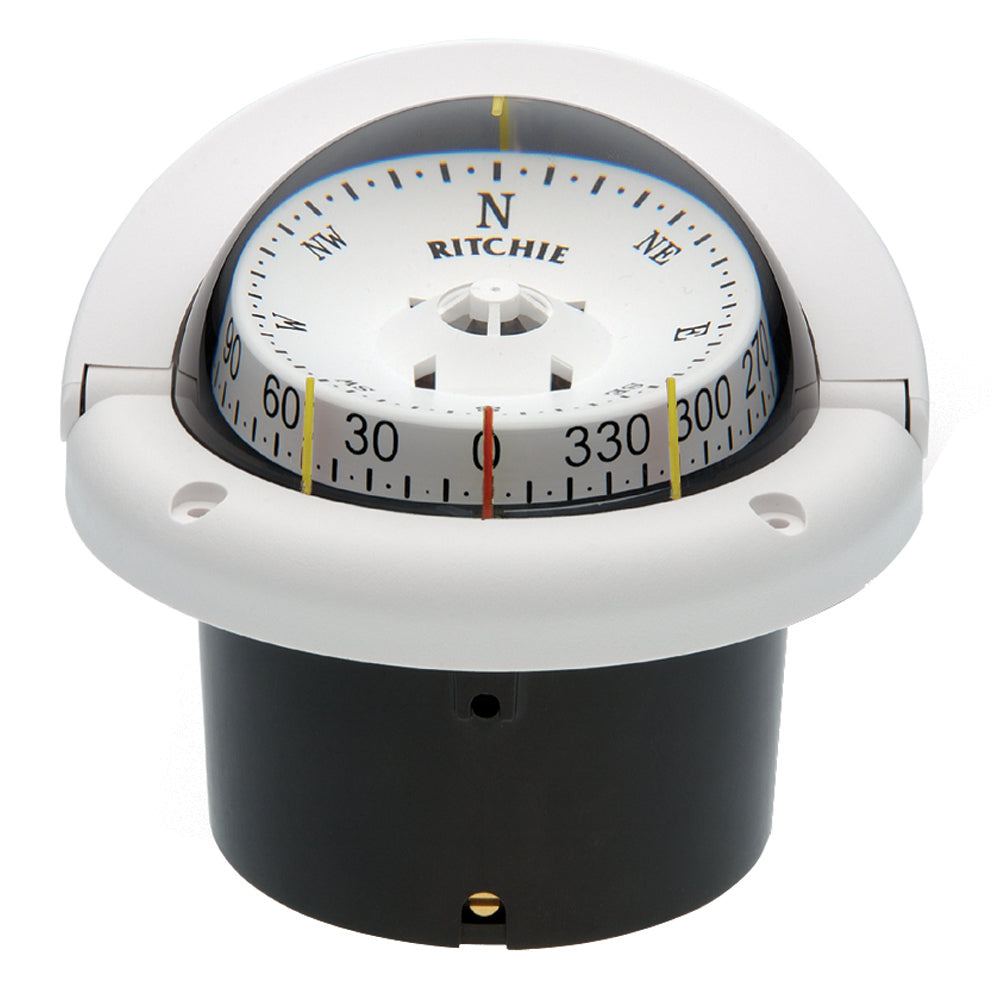

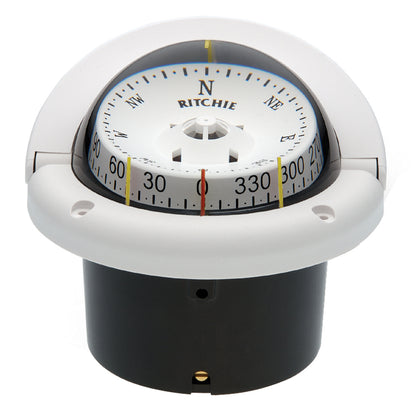

Ritchie HF-743W Helmsman Compass - Flush Mount - White [HF-743W]

Ritchie HF-743W Helmsman Compass - Flush Mount - White [HF-743W]

Regular price $285.52
Regular price Sale price $285.52
Sale Sold out

HF-743W - Helmsman

Features:

  • 3 3/4″ (95 mm) Open Face Dial or CombiDial
  • Easily Installed, Fits 4″ (102 mm) Mounting Hole
  • Exclusive Built-in Green NiteVu Night Illumination
  • Built-in Compensators to Easily Adjust for Deviation
  • Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
  • Powerful DirectiveForce Magnets for Fast Heading Lock-on
  • Movable Sun Shield
  • 45 Degree Lubber Lines
  • High Temperature Composite Construction for Extended Operating Range
  • Adapter Rings Available. Sold separately. 6″ (153 mm)
  • 100% Repairable
  • Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2lbs (907g)

Notes:

All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.

Some custom built OEM models may have different lighting.

Specifications:

  • Read: Both
  • Lubber Lines: Yes
  • Backlight: Yes
  • Mounting Style: Flush
  • Box Dimensions: 7"H x 8"W x 8"L WT: 2.1 lbs
  • UPC: 010342138286

Quick Guide (pdf)
Owner's Manual (pdf)
