Harken 12mm Bolt-Down Fairlead - Single [3274]

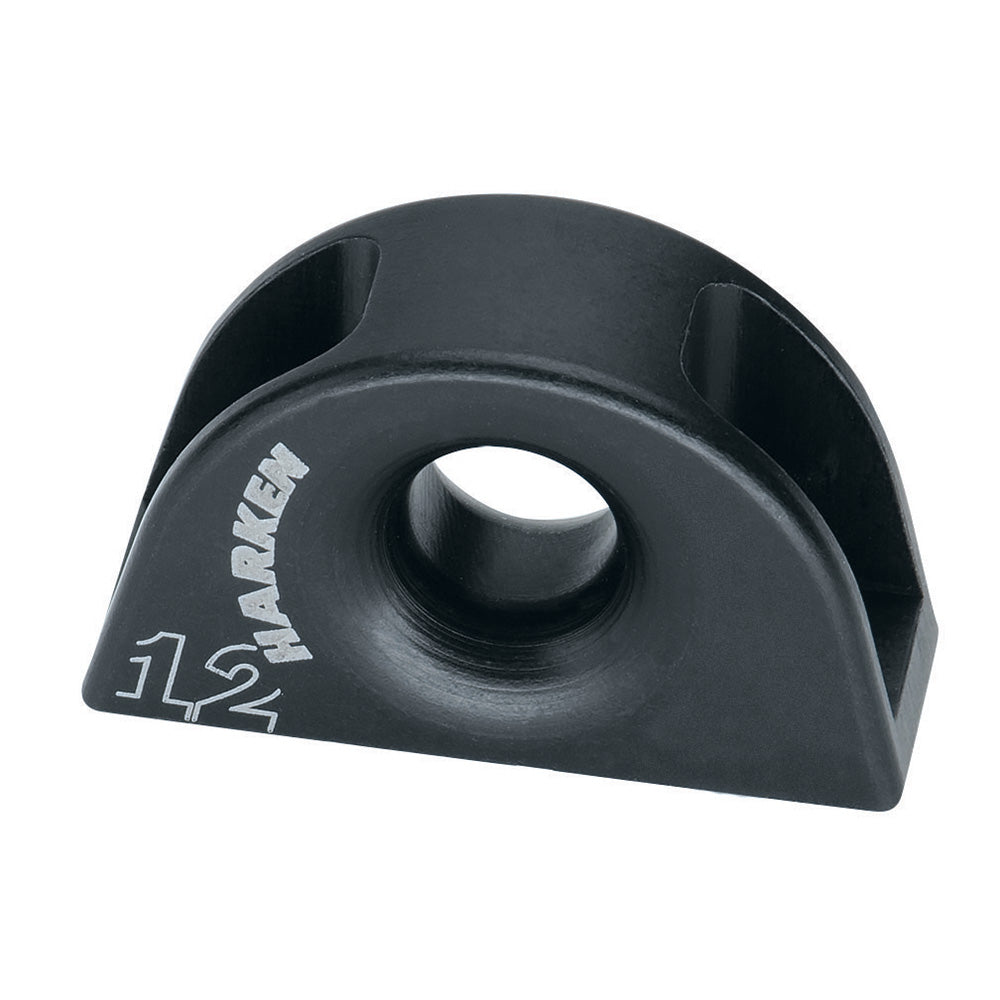

12mm Bolt-Down Fairlead - Single

Harken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors. These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability. Smooth surfaces and radiused center holes minimize line wear.

Specifications:

• Length (mm): 48 mm
• Length (in): 1-7/8 in
• Width (mm): 18 mm
• Width (in): 11/16 in
• Weight (g): 28 g
• Weight (oz): 0.99 oz
• Maximum line Ø (mm): 10 mm
• Maximum line Ø (in): 3/8 in
• Fasteners (mm): 6 SH mm
• Fasteners (in): 1/4 SH in
• Maximum working load (kg): 908 kg
• Maximum working load (lb): 2000 lb
• Breaking load (kg): 1816 kg
• Breaking load (lb): 4000 lb
• Height (mm): 28.2 mm
• Height (in): 1-1/8 in
• A (mm): 32 mm
• Center hole Ø (mm): 12 mm
• Center hole Ø (in): 15/32 in
