Blue Sea Systems

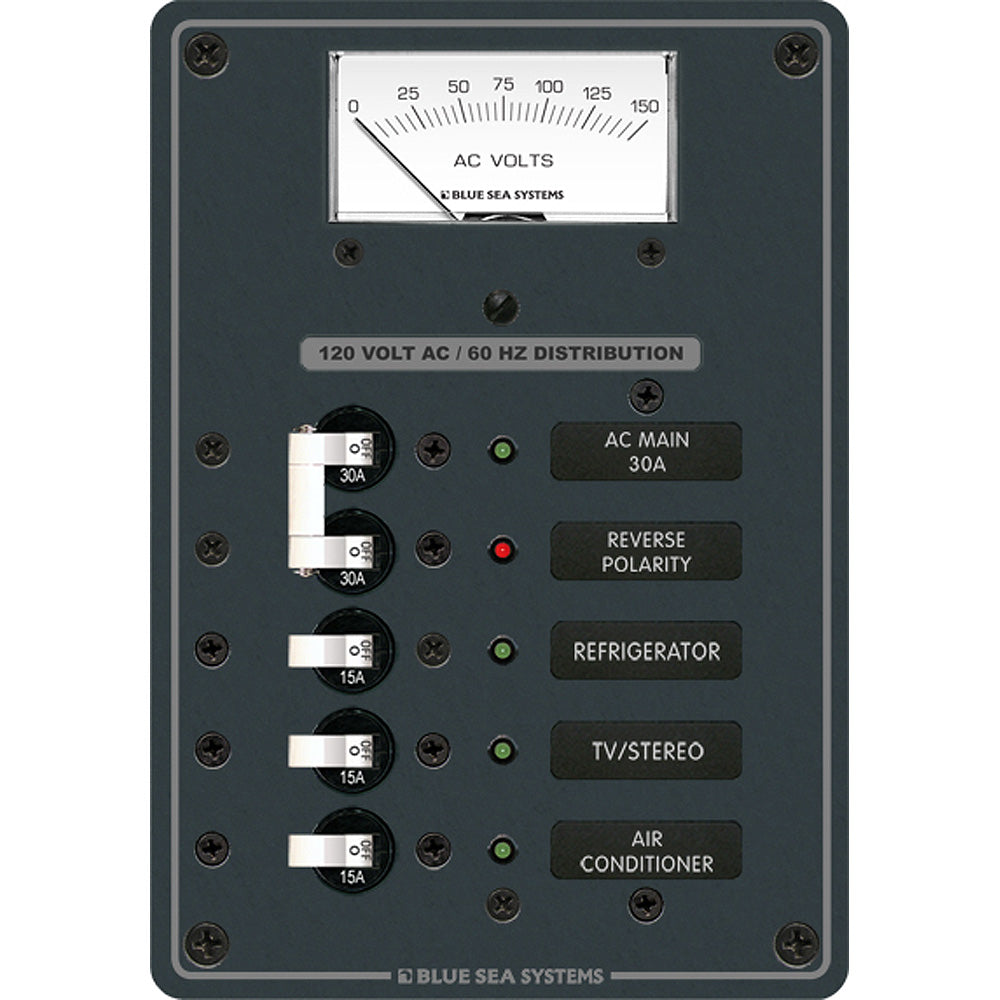

Blue Sea 8043 AC Main +3 Positions Toggle Circuit Breaker Panel - White Switches [8043]

Blue Sea 8043 AC Main +3 Positions Toggle Circuit Breaker Panel - White Switches [8043]

Regular price $412.15
Regular price Sale price $412.15
Sale Sold out

8043 AC Main +3 Positions Toggle Circuit Breaker Panel - White Switches

Features:

  • Red reverse polarity indicating LED
  • All hot, neutral and safety ground buses installed, fully pre-wired
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions

Specifications:

  • Positions: 3
  • Nominal Voltage: 120v AC
  • Height: 7.5"
  • Width: 5.25"

Included:

  • (1) 8031 Basic AC Panel Label Set - 30 Labels
  • (4) 8034 LED - 120v AC Green
  • (1) 8066 LED - 120v AC Red
  • (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
  • (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
  • (1) 9353 AC Voltmeter - 0 to 150v AC (Meter)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Max Breaker Quantity: 3
  • Voltage: 120v
  • Box Dimensions: 7"H x 10"W x 10"L WT: 5.6 lbs
  • UPC: 632085080433
