Blue Sea Systems

Blue Sea 8027 AC Main +6 Position Breaker Panel - White Switches [8027]

Blue Sea 8027 AC Main +6 Position Breaker Panel - White Switches [8027]

Regular price $346.88
Regular price Sale price $346.88
Sale Sold out

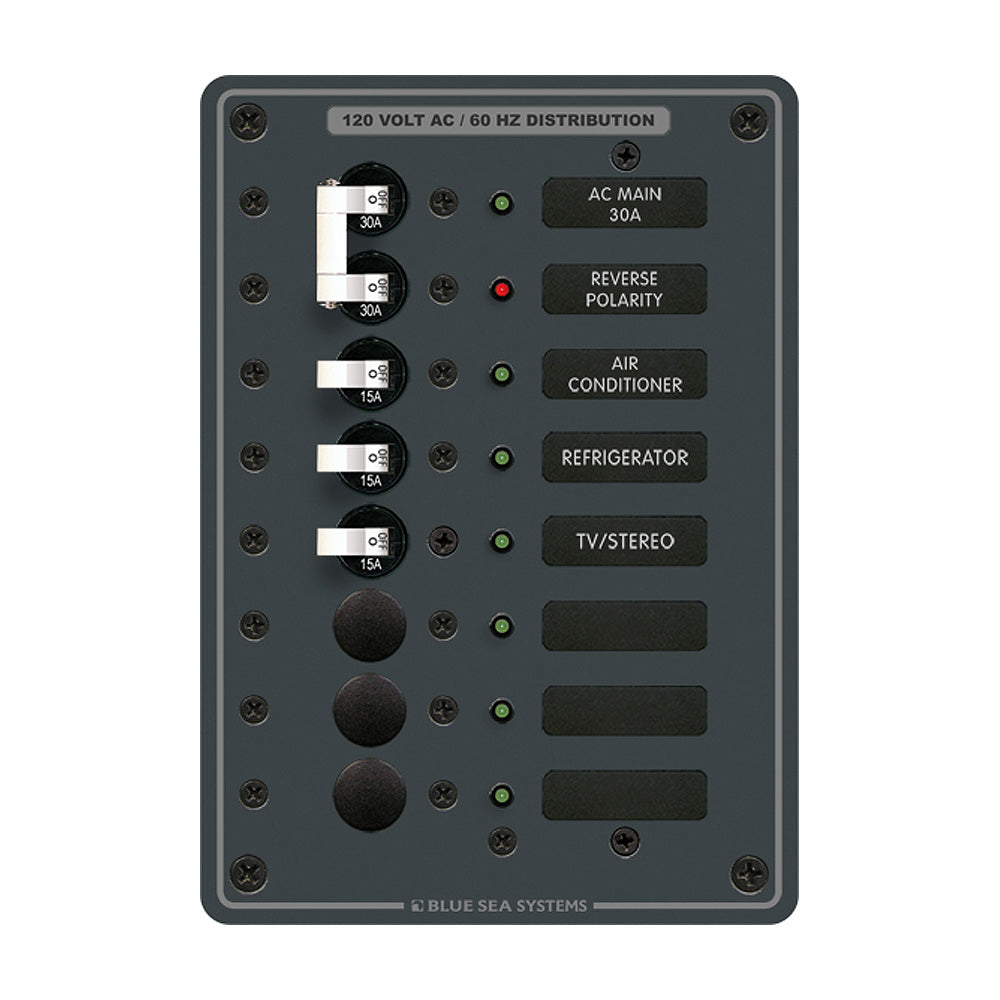

8027 AC Main +6 Position Breaker Panel - White Switches

Features:

  • Red reverse polarity indicating LED
  • All hot, neutral and safety ground buses installed, fully pre-wired
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions

Specifications:

  • Positions: 6
  • Nominal Voltage: 120v AC
  • Height: 7.5"
  • Width: 5.25"

Included:

  • (1) 8031 Basic AC Panel Label Set - 30 Labels
  • (7) 8034 LED - 120v AC Green
  • (1) 8066 LED - 120v AC Red
  • (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
  • (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Max Breaker Quantity: 6
  • AC/DC: AC
  • Voltage: 120v
  • Box Dimensions: 5"H x 7"W x 12"L WT: 2 lbs
  • UPC: 632085080273

Owner's Manual (pdf)
