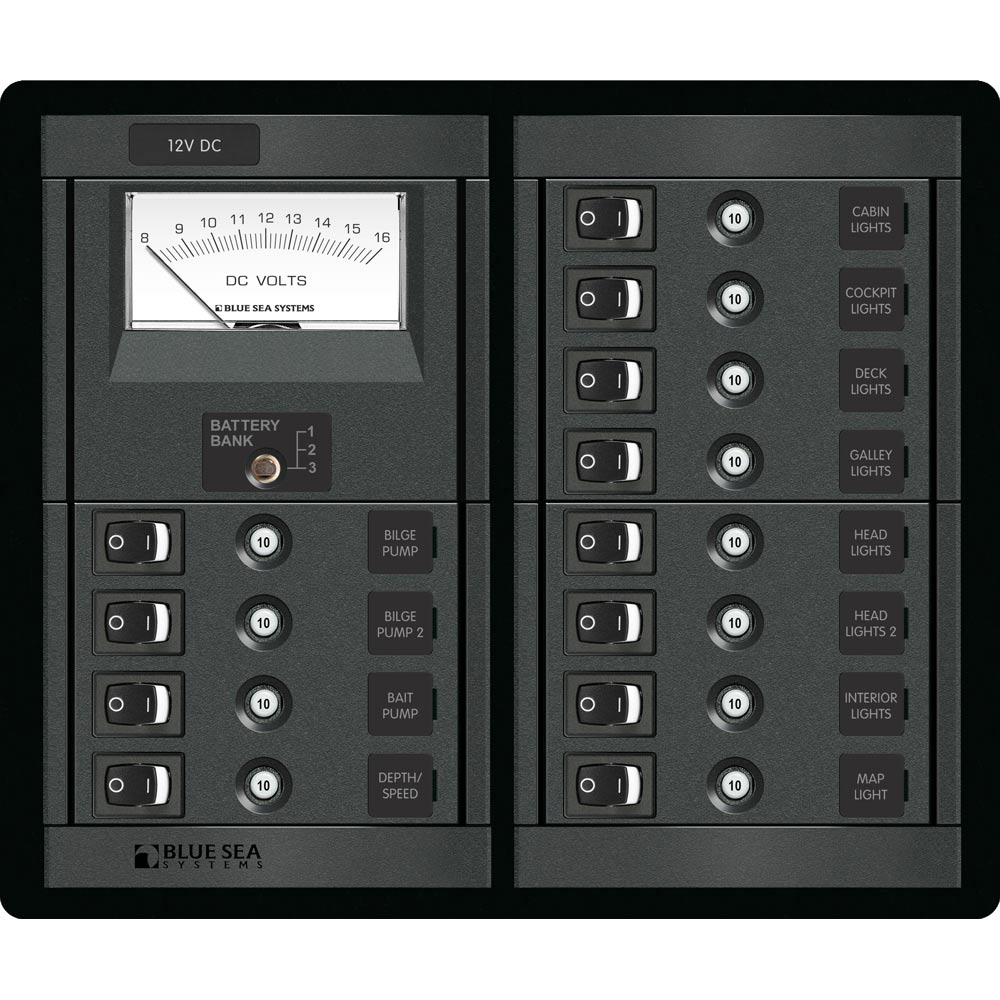

Blue Sea 1464 12 Position Switch CLB + Meter Square [1464]

12 Position Switch CLB + Meter Square

Features:

• Available with voltmeters and ammeters

• Panels with meters include a toggle switch to monitor voltage on up to three battery banks

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 12

• Nominal Voltage: 12V DC

• Maximum Amperage*: 120A

• Height: 7.75" (196.85mm)

• Width: 9.25" (234.95mm)

• Depth: 3.50" (88.9mm)

• Weight: 4.29lb (1.95kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(12) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(12) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 6"H x 10"W x 13"L WT: 3.65 lbs
• UPC: 632085014643

Quick Guide (pdf)
Owner's Manual (pdf)
