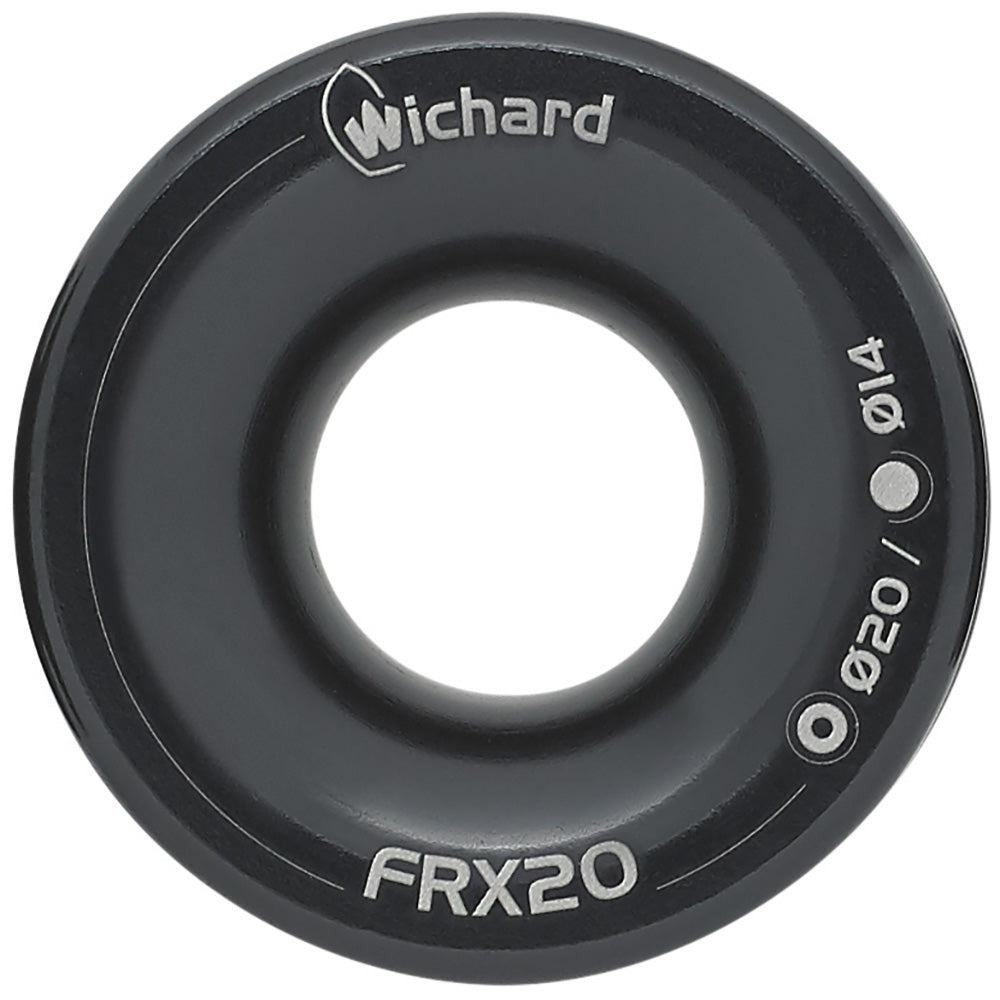

Wichard FRX20 Friction Ring - 20mm (25/32") [22014W]

FRX20 Friction Ring - 20mm (25/32")

Features:

• Efficient and light
• FRX Wichard thimbles are efficient, light, and reliable
• Very strong and can be used for heavy loads and semi-static lines
• FRX thimbles are designed to make your lines run smoothly with minimum wear
• They are hard anodized (50 microns) for a longer lifespan

Applications:

• Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

• Materials: Anodized aluminium
• Working load: (lb) 7050 / (kg) 3200
• Weight: (lb) 0.068 / (g) 31

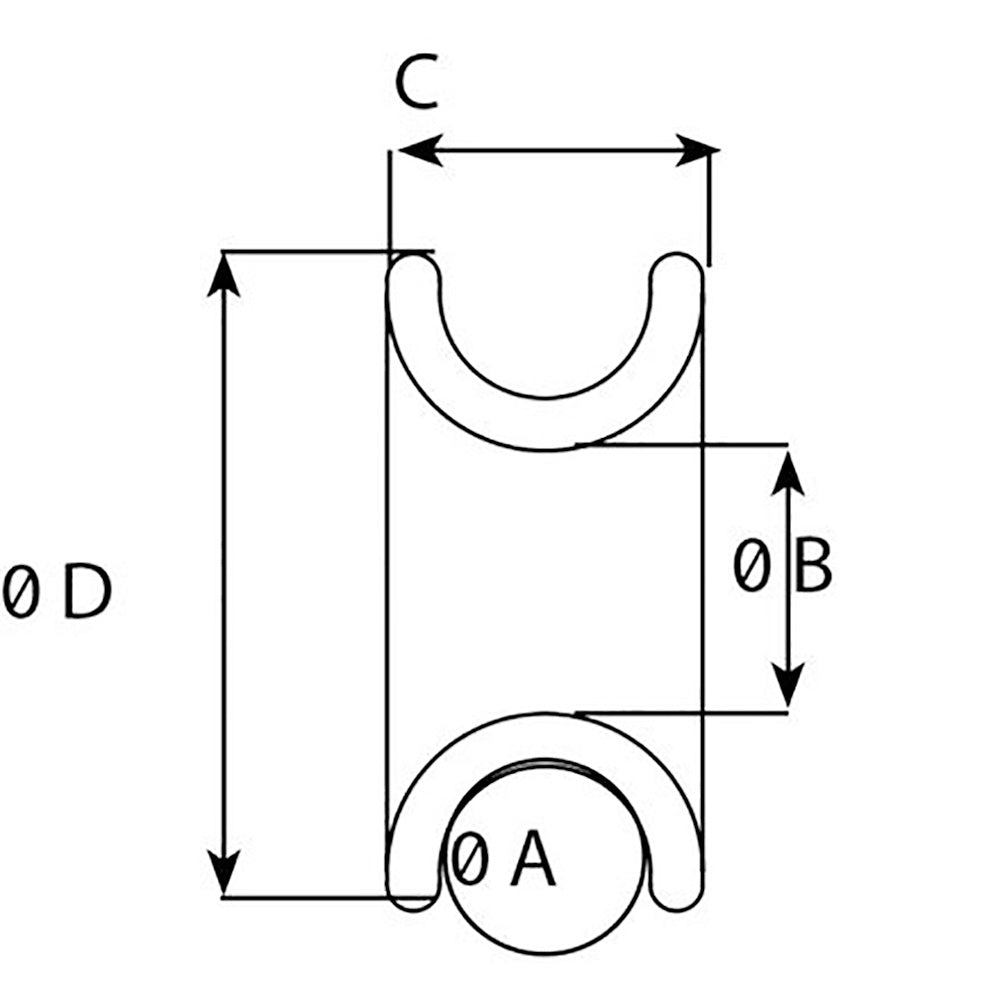

• A: (inch) 35/64" / (mm) 14
• B: (inch) 25/32" / (mm) 20
• C: (inch) 53/64" / (mm) 21
• D diameter: (inch) 1 27/32" / (mm) 47

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
